[Mind Exercise] State machine Study Plan what should be

Collaborative between @di.aditia and @ihsansaktia

Made using mermaidjs

STD Rencana Studi

stateDiagram-v2
    [*] --> DRAFT: FRS dibuka
    DRAFT --> SUBMITTED: Selesai mengisi rencana studi
    SUBMITTED --> DRAFT: Batal mengirim rencana studi
    SUBMITTED --> DRAFT: Sebagian mata kuliah tidak disetujui dosen wali
    SUBMITTED --> APPROVED: Semua mata kuliah disetujui dosen wali
    APPROVED --> DRAFT: Persetujuan dibatalkan dosen wali
    APPROVED --> FINAL: Disahkan kaprodi
    FINAL --> [*]

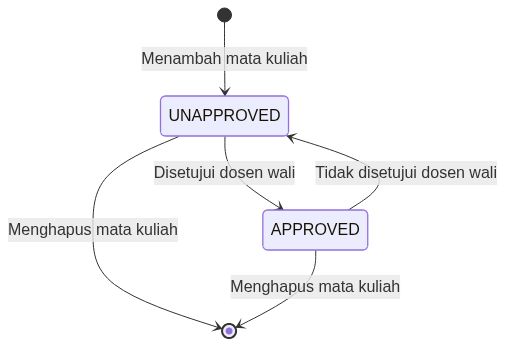

STD Mata Kuliah

stateDiagram-v2
    [*] --> UNAPPROVED: Menambah mata kuliah
    UNAPPROVED --> APPROVED: Disetujui dosen wali
    UNAPPROVED --> [*]: Menghapus mata kuliah
    APPROVED --> UNAPPROVED: Tidak disetujui dosen wali
    APPROVED --> [*]: Menghapus mata kuliah
